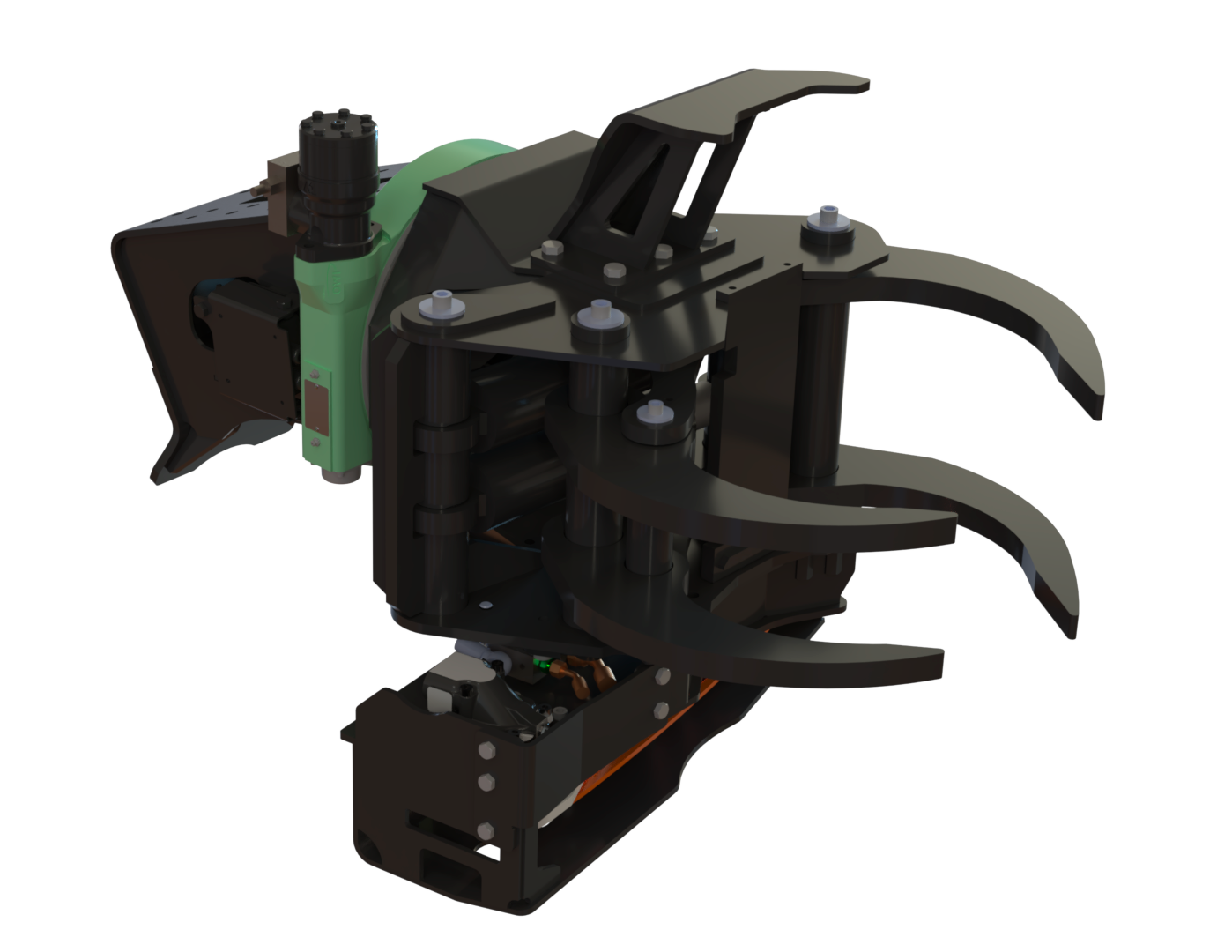

JAK-550S Grapple saw for 12–25 tonne excavators

JAK-550S Grapple saw for 12–25 tonne excavators

The JAK-550S is the heavy-duty model in the S-series for 12–25 tonne excavators. Its 550 mm cutting capacity, secure grip and rigid mounting make it a productive attachment for cutting and controlled felling of larger trees.

Applications

• Removal of larger trees on construction and infrastructure sites
• Roadside, utility corridor and field edge clearance
• Forest management and energy wood harvesting
• Cross-cutting and handling large stems close to the machine

Key benefits

• A 550 mm cutting capacity and 25-inch saw bar for demanding applications.
• 360-degree hydraulic rotation improves positioning and material placement.
• Electro-hydraulic control operates all functions through one double-acting hydraulic circuit.
• Automatic chain lubrication supports efficient operation.
• Chain tensioning is manual.
• Felling support and a foot are included as standard.
• Manufactured from SSAB steel with extensive use of Hardox® steel.

Installation and control

The mounting interface is adapted to the customer’s excavator. Integrated 360-degree rotation and a hydraulic swivel allow operation from different directions without twisting the hoses.
