LOGRUNNER MGS40 Multi-purpose loading grapple with saw

LOGRUNNER MGS40 Multi-purpose loading grapple with saw

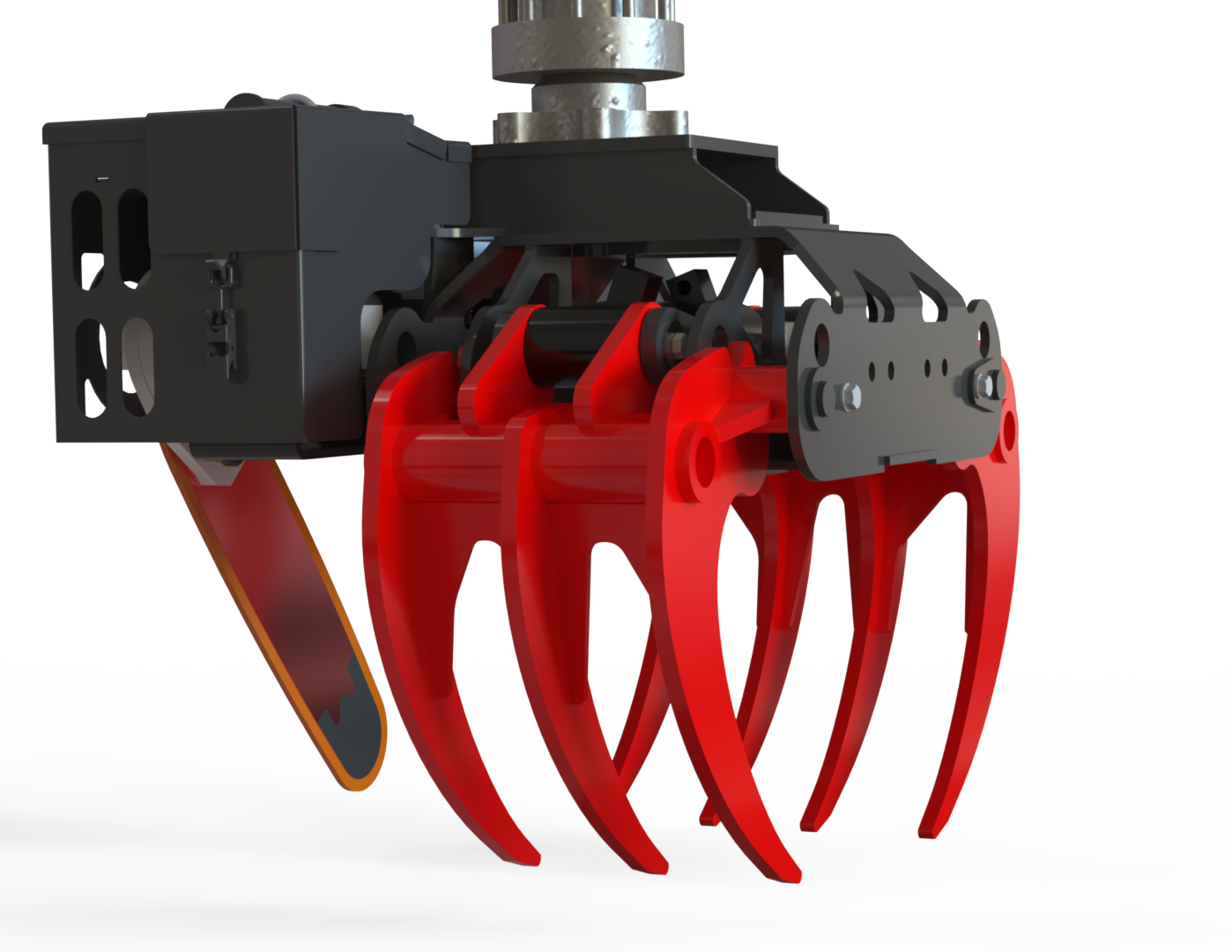

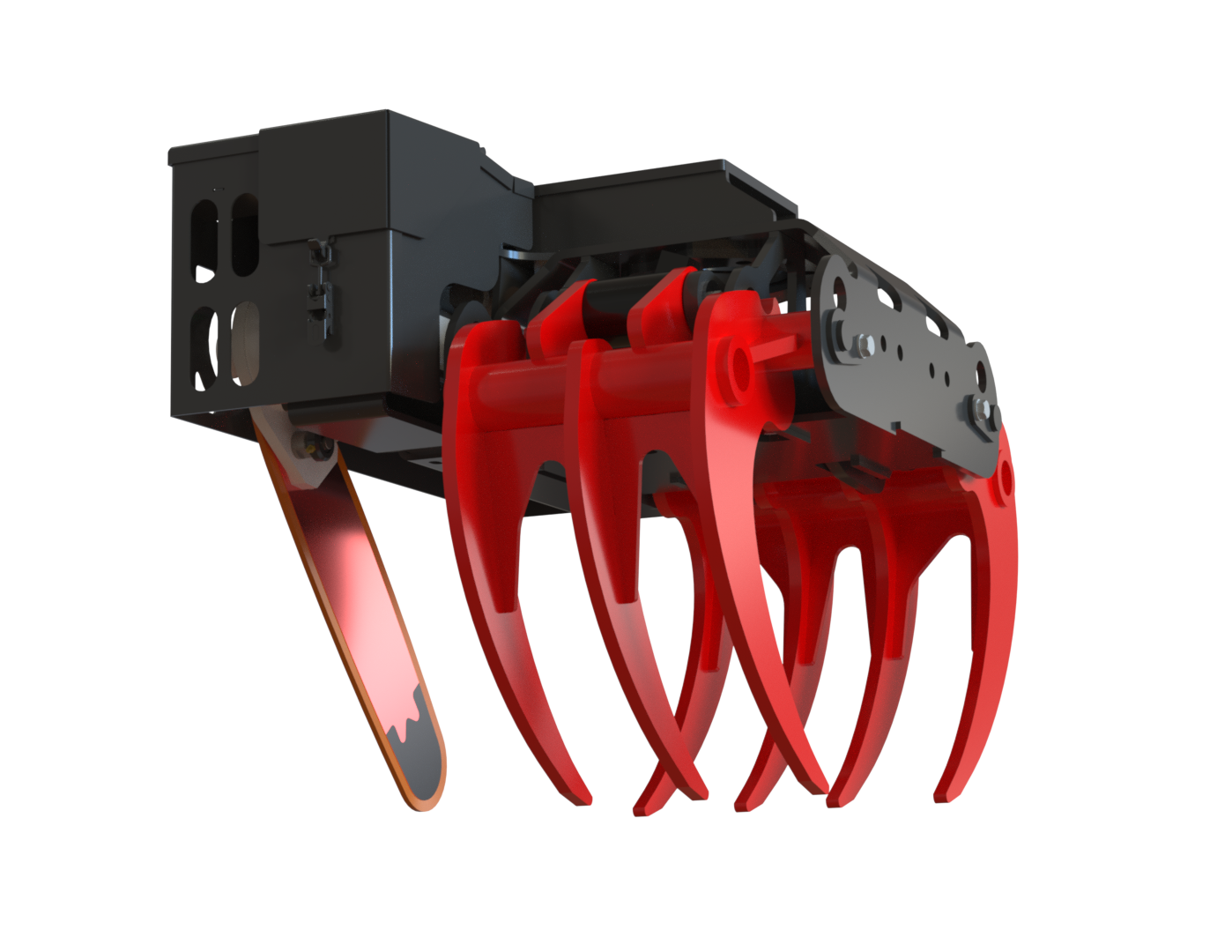

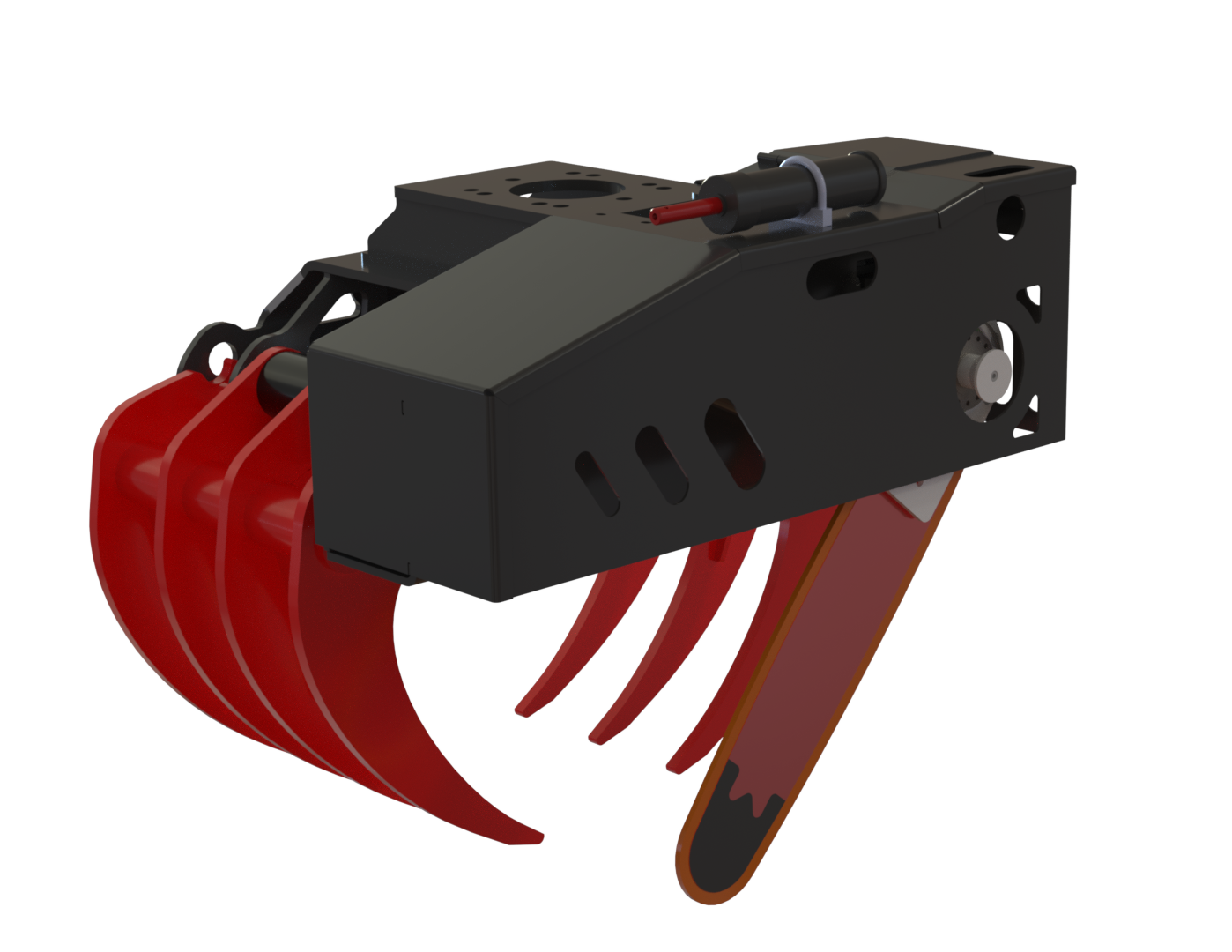

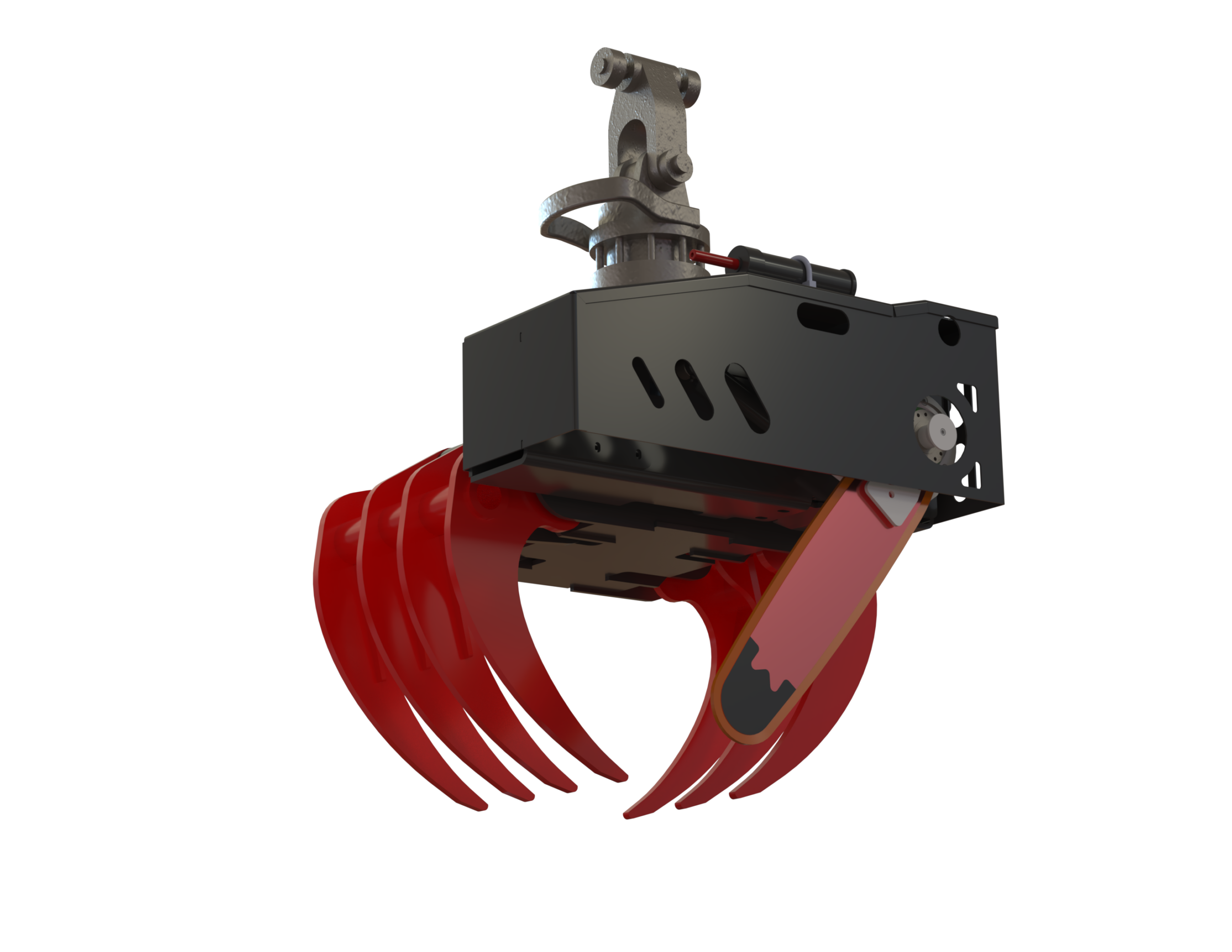

The LogRunner MGS40 is a lightweight, multi-purpose grapple that combines a loading grapple with a hydraulic chainsaw. Timber can be gripped, sorted, moved and cross-cut during the same work cycle without a separate saw or attachment change.

Applications

• Loading energy wood, small-diameter stems and timber
• Cross-cutting stems on the ground or in a pile to transport length
• Handling material collected from roadsides and field edges
• Handling and sorting branches, tops and bundles of wood

Key benefits

• Loading and cutting with one grapple reduces work stages and attachment changes.
• A 1200 mm opening is well suited to bundles and loose material.
• A weight of 220 kg preserves as much crane lifting capacity as possible.
• A 400 mm cutting capacity extends the use of a conventional loading grapple.
• Electro-hydraulic control operates all functions through one double-acting hydraulic circuit.
• Automatic chain lubrication reduces maintenance.
• Chain tensioning is manual.
• Manufactured from SSAB steel with extensive use of Hardox® steel.

Installation and control

The rotator and mounting interface are configured to suit the customer’s carrier, crane and application.
