Excavators 5-12 Tn (11000-26455 lbs)

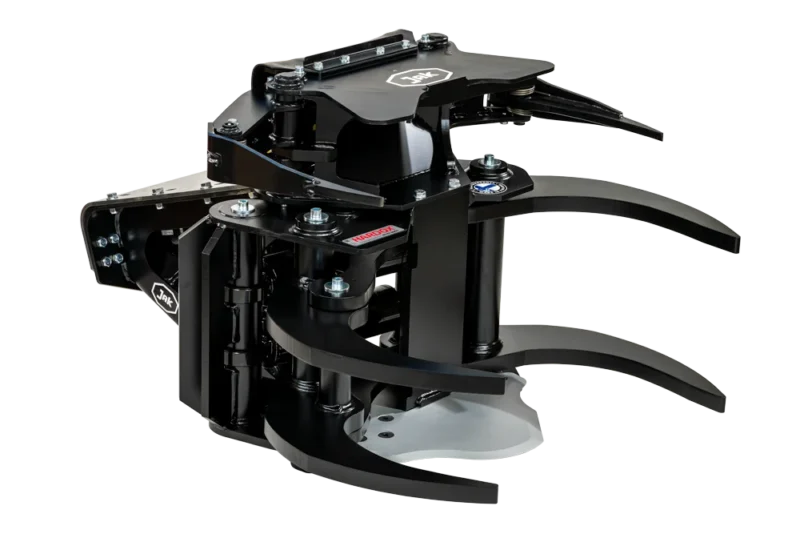

The JAK-250B GEN4 is a fast, compact and powerful tree shear designed for use with excavators weighing 5-12 tons. The optional eBoost hydraulic system increases the speed of the tree shear by up to 100% without reducing power.
Thanks to the updated base machine, the number of accessories available has increased significantly. The design-protected structure with two jaws guarantees a solid and secure grip on the tree trunk. With the help of the tree shear, tree clearing goes smoothly up to 250 mm thick tree trunks. Thanks to the removable blade, you can also use the JAK-250B GEN4 tree shear as a regular timber grapple.
In manufacturing, we use Hardox® wearing steel, which guarantees durability and reliability in all situations and conditions. Domesticity and high-quality materials are the basis of the JAK-250B GEN4 tree shear.
Couplings
The most common excavator couplings
Order according to the customer's machine type
Metric | Imperial | |
---|---|---|
Weight | 290 kg | 639.3 lbs |
Height | 488 mm | 19.2 in |
Cutting diameter | 250 mm | 9.8 in |
Operating pressure | 250–300 bar | 3625-4351 psi |
Oil flow* | 50-120 l/min | 13.2-31.7 gal/min |
Width when open | 690 mm | 27.1 in |
Buffer plate height | 390 mm | 15.3 in |
Guarantee | 24 months | 24 months |
*eBoost halves the required amount of oil needed
